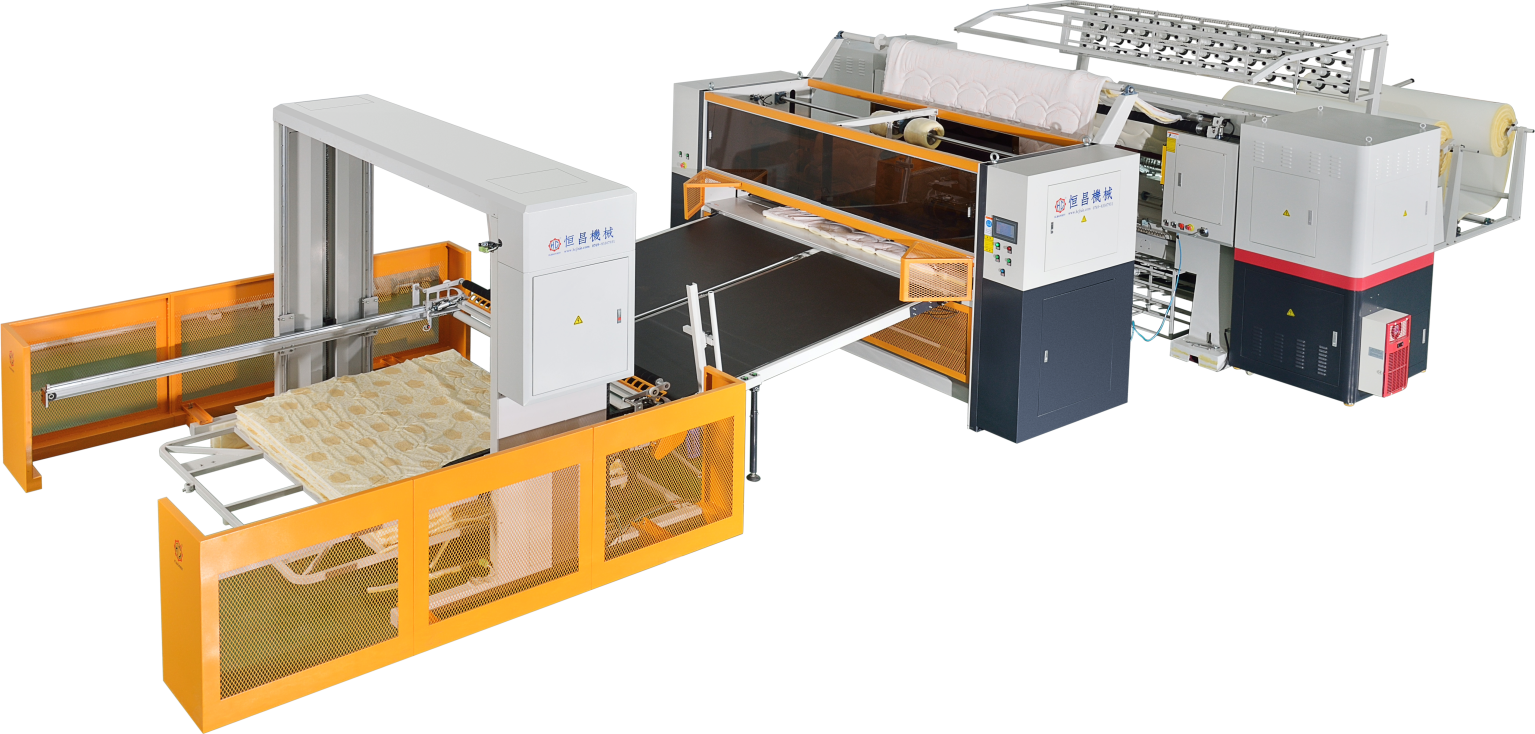

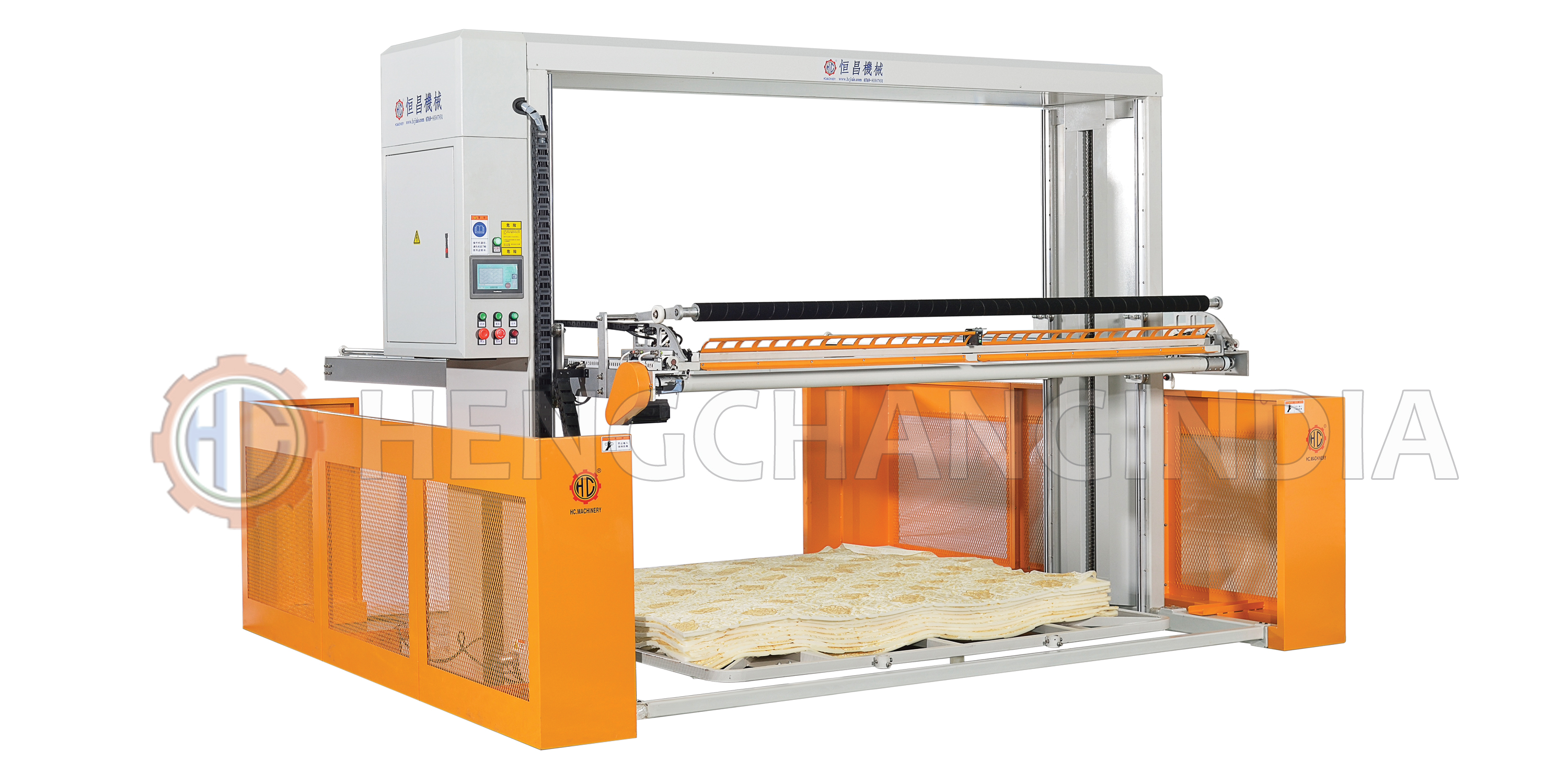

HC ST-A Material Stacker Machine
Special Functions
- Independent sewing heads,allows quilt with simple patterns, T & J patterns and single head quilting patterns.(Patented product).
- State of the art tracking,superior tracking system allows effortless movement of foam to be fed into the quilter(Patented product).
- Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness and patterns.
- A high powered fast speed controlled servo motor for thick quilting with accuracy.
- New main shaft control for easy timing adjustment.
- Using high quality sealed bearings.
- Newly updated software allowing quick design changes of operation.
- Thread break detector.
- Using air cylinder for thread cutting tail length.
- Emergency safety devices.
- Diagnostic detection.

Technical Specification
Size (length*width*height) | 3070x3480x2350(mm) |
Weight | 500kg |
Applicable for material width | 2400mm |
Applicable for material height | 1850mm |
Speed | 5pcs/min |
Power | 2 KW |
Voltage | 380V/50Hz |
Used for stacking the quilted fabric after cutting..Application
