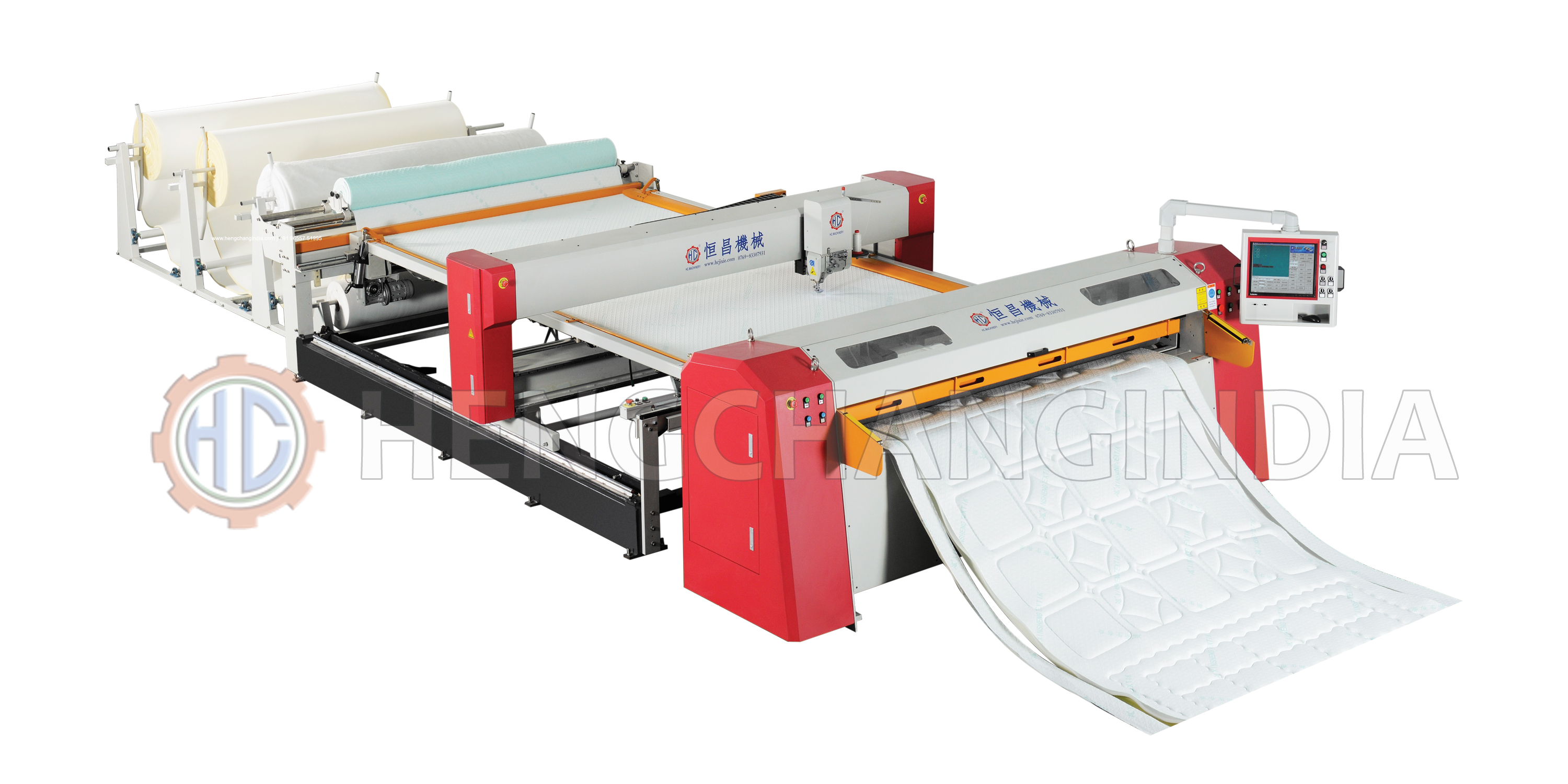

HC S3000 Automatic High Speed Single Needle Lock Stitch Quilting Machine
Special Functions
- Advantage quality lock stitch sewing head, rotating speed,can up to 3000 RPM.
- Diagnostic testing for thread broken and pattern compensation.
- Adjustable presser plate in different thickness.
- Memories restart all patterns after stop quilting.
- 360° T & J and simple pattern ,total 200 patterns.
- Capable pattern-designing software can adopt various quilting file and quilting system.
- Daily output counter and total output counter.
- Needle arrangement and patter showing.
- Pattern compensation and correction.
- Servo Driver motor operations.
- Automatic material feeding and cutting device.
Technical Specification
| Size (length*width*height) | 10000 x 4500 x 1600(mm) |
| Weight | 5000kg |
| Quilt thickness | ≤80mm |
| Quilt width | ≤2400mm |
| Rotation speed for needle | 300 Rpm |
| Production speed | 10 - 18 P/h |
| Needle type | 160/21, 160/23 |
| Voltage | 3-phase,380V/50Hz, 3-phase,220V/60Hz |
| Stitch | 2-6mm |
| Power | 8.8KW |
Mattress panel, mattress pad, bedspreads, comforters, bedding, upholsteery and etcApplication
