HC S2000 Automatic High Speed Single Needle Lock Stitch Quilting Machine
Special Functions

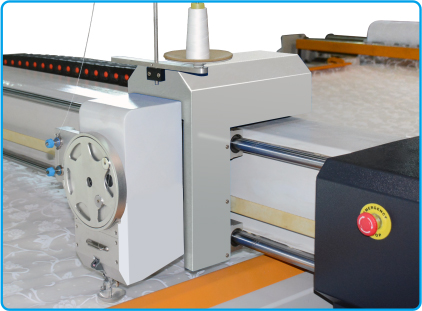

- Advanced qualified lcok stitch sewing head, rotating speed can be upto 2000RPM.
- Diagnostic testing for thread broken and pattern compensation.
- Adjustable presser plate in different thickness.
- 360° T&J and simmple pattern, more than 200 patterns.

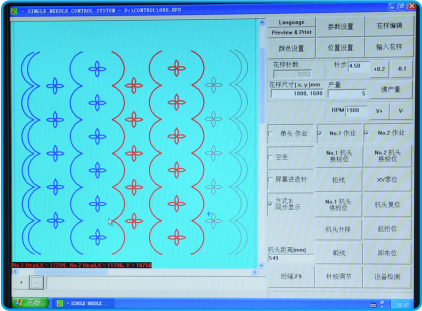

- Capable pattern-designing software can adopt various quilting file and quilting system.
- Daily outpur counter and total output counter.
- Needle arrangment and pattern showing.
- Automatic needle lift, pneumatic thread cutting and thread break detector,
- Pattern compensation and correction.

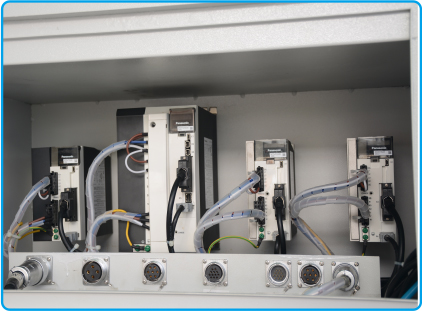

- Servo driver motor operations.
- Automatic materials feeding and cutting device.
Technical Specification
| Quilting Width | ≤2400mm |
| Quilting thickness | ≤80mm |
| Needle Size | DP x 17 21#/22#/23# |
| Stitch | (2-6) mm |
| Rotating Speed of needle | 2000RPM |
| Production speed | (40-120) m/h |
| Power | 8.8kw |
| Voltage | 3-Phase, 380V,50Hz/ 3-Phase,220V,60Hz/ |
| Gross weight | 4500kg |
| Size (L x W x H) | 10000x4500x1600mm |
Mattress panel, mattress pad, bedspreads, comforters, bedding, upholsteery and etcApplication
